Numeric Data Editor

Command: Editors > Numerical Data Editor

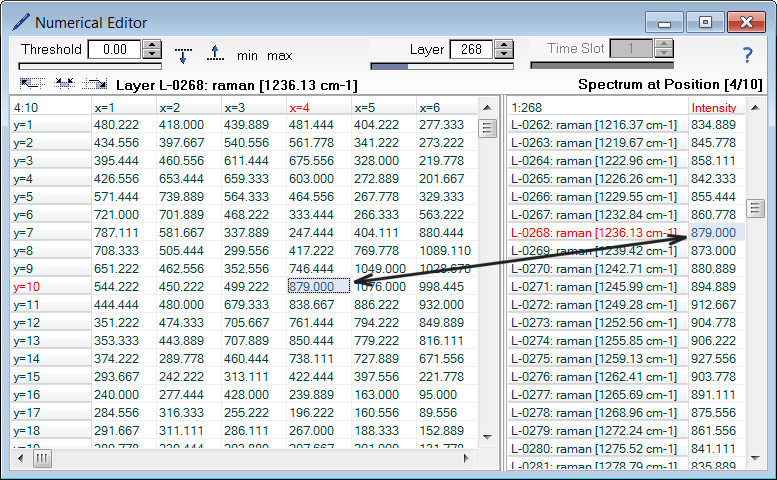

Sometimes it is useful to directly access data of individual cells of the data matrix. The numerical data editor is comparable to a spreadsheet with two panes showing the layer data in the left pane and the spectral data at the right.

Selecting a cell in the left pane automatically loads the corresponding spectrum into the right pane. Vice versa, selecting a particular cell of the spectrum in the right pane, displays the corresponding layer at the left. The selected cell is highlighted in blue in both tables.

You can edit the data by directly typing into a selected cell. Further you can copy and paste or fill selected cells by selecting a range of cells and using the commands of the context menu (right-click the selection). For more elaborate changes of the raw data you might consider either simple formulas, predefined bulk conversions or ILabPascal scripts.


Last Update: 2018-Dez-14
